Centreless Grinding Machine...

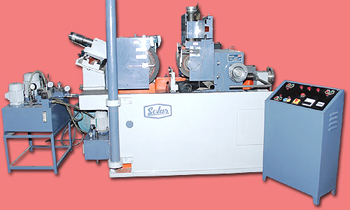

MODEL NO. SL-100

MODEL NO. SL-150

Special Feature :

Regulating wheel head spindle driven by hydro motors (having infinitely variable speed)

Click here for Technical Specifications

Out Standing Features :

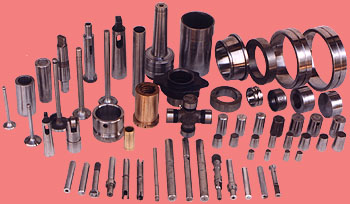

"SOLAR" brand centreless grinding machine is designed to grind cylindrical parts at high production rates and close tolerances straight shoulders and taper parts can be ground with equal ease suitable for hardened and unhardened Steel, Brass, Copper, Aluminum o any other materials.

Bed :

A single block of cast iron with a proper brinell hardness greater material thickness and heavier rib design provide maximum rigidity for greater strength providing for vibration absorption even while the machine is utilized to its fullest extent.

Grinding Wheel Head :

The grinding wheel spindle is made of hardened and ground nickel chrome alloy steel. It runs in oil chamber on Taper roller bearing or on bush as required. They are sturdy and strong enough to permit heavy duty grinding at high speeds and assure superior surface finish and accuracy.

Regulation Wheel Head :

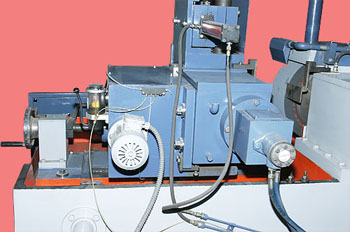

The regulating wheel spindle is made of hardened and ground nickel chrome alloy steel. It runs in oil chamber on taper roller bearing or on bush as required. The regulating wheel head can be tilted up about the axis to 5, to facilitate through feed grinding. The upper slide can be precisely swiveled up to 3 in order to grid taper in indeed grinding and provide perfect contact between work pieces and grinding wheel in through feed grinding (upper slide swiveled Facility available at extra cost.)

Circulating :

Motorized Circulating for the grinding wheel spindle for long life, circulating flow to the spindle is cleaned by an extra filter that located outside the machine provide at extra cost.

Truing Device :

The truing device for both grinding wheel and regulating wheel are hydraulically operated, so that smooth evenly trued wheels can be obtained for efficient cutting action and highly uniform finished. Turning devices is also available in manually hand operated. Also the profile truing devices for grinding wheel and regulating wheel is available at extra cost which requires multiple diameter grinding at a time.


PROFILE TRUING DEVICE GRINDING ACTION


HYDRAULIC POWER PACK UNIT FOR WHEEL DRESSING OIL CIRCULATING UNIT FOR
GRINDING WHEEL HEAD
WHEEL BALANCING STAND WITH HARDENED GROUND ARBOR

SWIVELING POSITION OF BASIC UPPER SIDE DIFFERENT KIND OF WORK PIECES

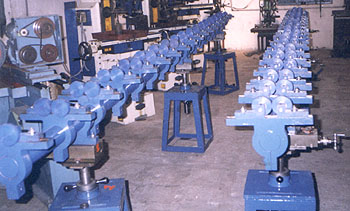

LONG BAR FEEDING ATTACHMENT FOR
BRIGHT BAR GRINDING

  Standard Accessories   Optional Equipment an Extra Cost
-> Electric Motors. -> Hydraulic dressing system for grinding
    wheel and regulating wheel.
-> Electric Control Panel. -> Profile turning devices for grinding wheel
    and regulating wheel.
-> Coolant tank with pump. -> Circulating unit system for grinding wheel
    head.
-> Grinding & Control wheel fitted with flange. -> Infinitely variable D.C. drive for regulating
    wheel head.
-> Standard work rest blade. -> Micro feed attachment for fine
    adjustment.
-> Diamond dressing holder with diamond. -> Grinding wheel balancing stand with
    hardened and ground arbour.
-> Grinding wheel flange puller. -> Spare grinding wheel flange.
-> Wheel flange nut's spanner. -> Work rest blade in different size.
-> V-Belt Set. -> Magnetic coolant separator.
  -> Long bar feeding attachment.
