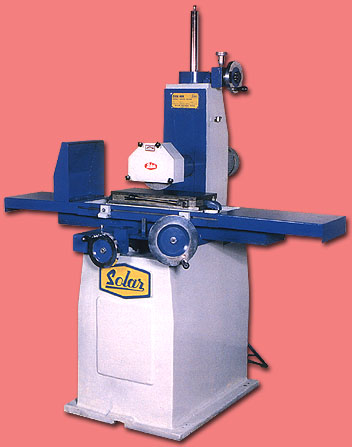

Surface Grinding Machine...

Description Model 5020 Model 6525
Working surface of the table 500 x 200 mm 650 x 250 mm
Maximum height from table to grinding wheel 275 mm 250 mm
Vertical feed graduation 0.01 mm 0.01 mm
Cross feed graduation 0.05 mm 0.05 mm
Spindle speed 2800 RPM 2800 RPM
Size of grinding wheel
(OD x W x I.D.)		 200 x 13 x 31.75 mm 200 x 20 x 31.75 mm
Magnetic chuck recommended 450 x 200 mm 600 x 250 mm
Electric motor recommended 1 HP 3 Phase
2800 RPM Flange mount		 1.5 HP 3 Phase
2800 RPM Flange mount
Net Weight Approx. in Kg. 900 kg. 1100 kg.

  Standard Accessories   Optional Equipment an Extra Cost
-> Grinding wheel fitted with flange. -> Permanent magnetic chucks.
-> Table and travel wheel guards. -> Coolant pump with tank.
-> Flange puller. -> Lubricating hand pump.
-> Electric motor for spindle. -> Wheel balancing stand with arbor.
-> Electric starter. -> Spare grinding wheel flange.
-> Diamond dresser holder. -> Hydraulic power pack for table travel.

Out Standing Features :

The wheel head spindle runs in precision angular contact bearing preloaded for optimum rigidity and life, assuring smooth and chatter free finish under the most demanding conditions. The spindle is greases packed. The motor is directly coupled to the spindle through a flexible coupling to eliminate vibrations. The wheel head assembly as mounted on a heavy column enclosed guide ways with cover to keep them dust free.

WHEEL BALANCING STAND WITH ARBOR GRINDING ACTION

Note : All dimensions are approximate and illustrations are not binding as to details. All specification designs and dimensions are subject to change without any notice. Extra Accessories shown in the picture are not parts of the standard machine.
